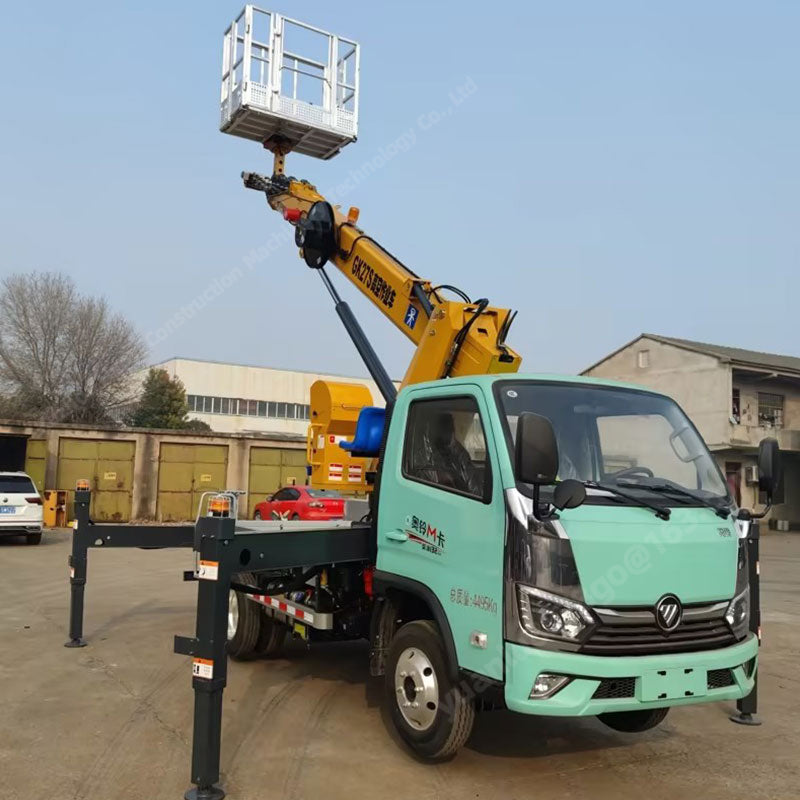

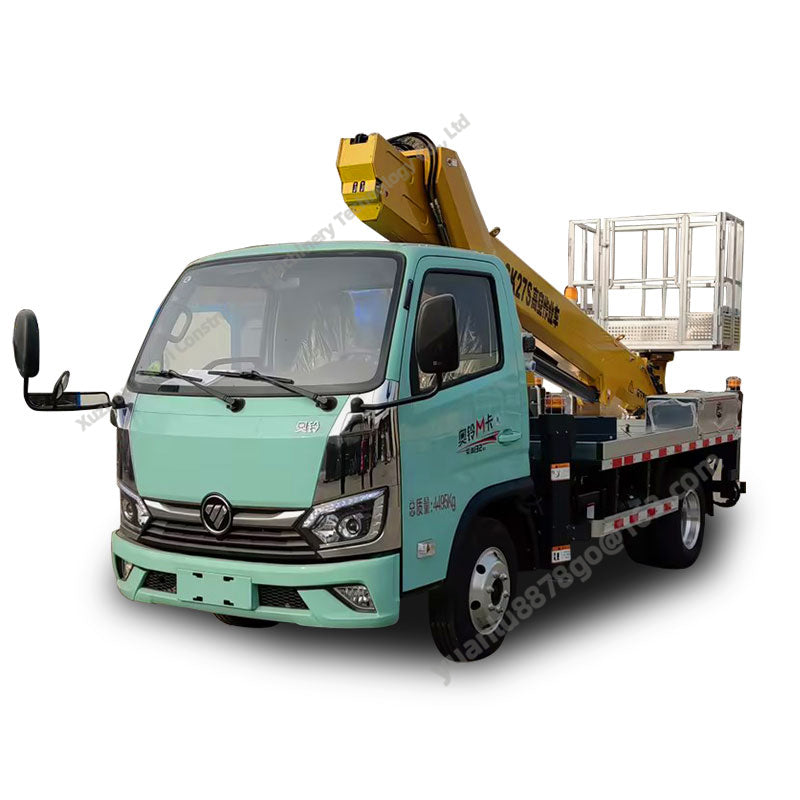

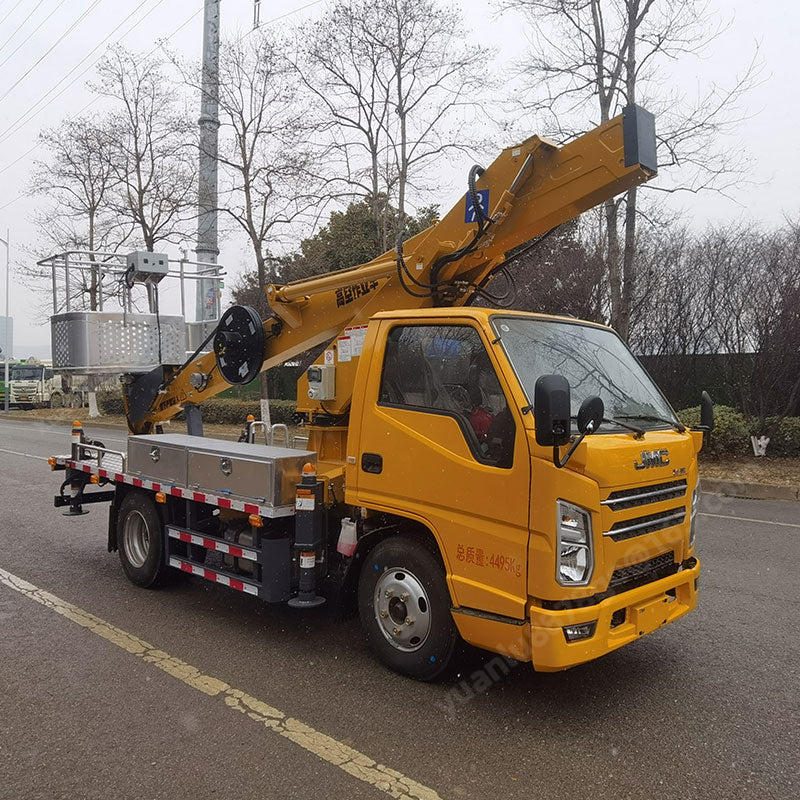

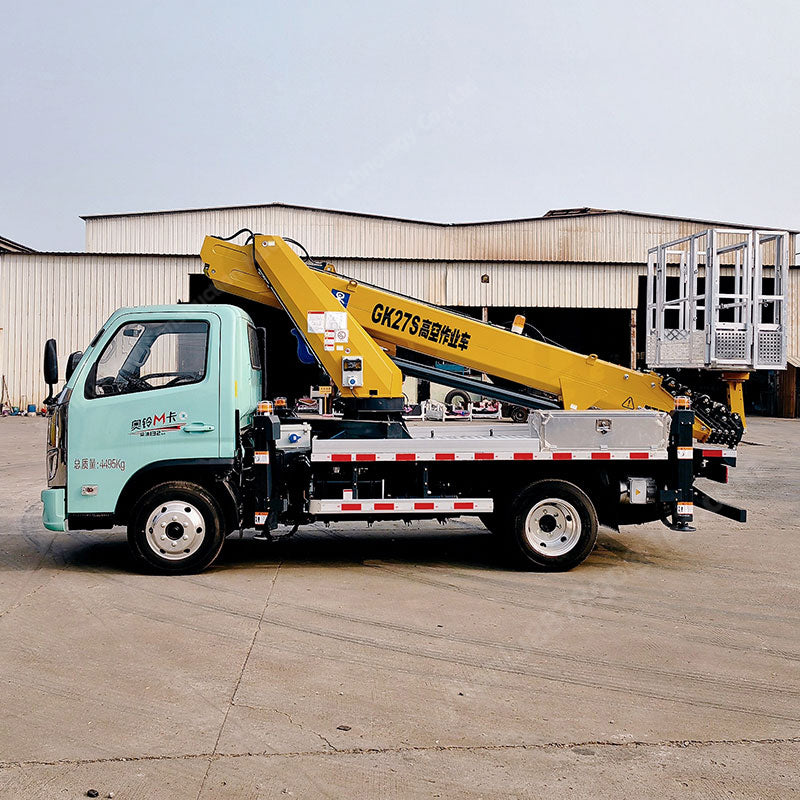

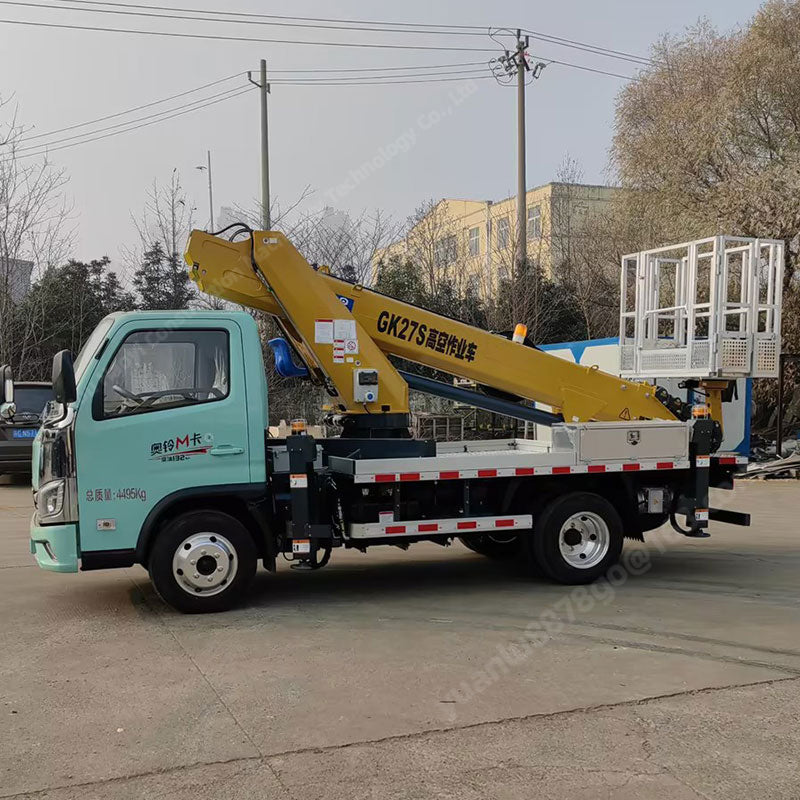

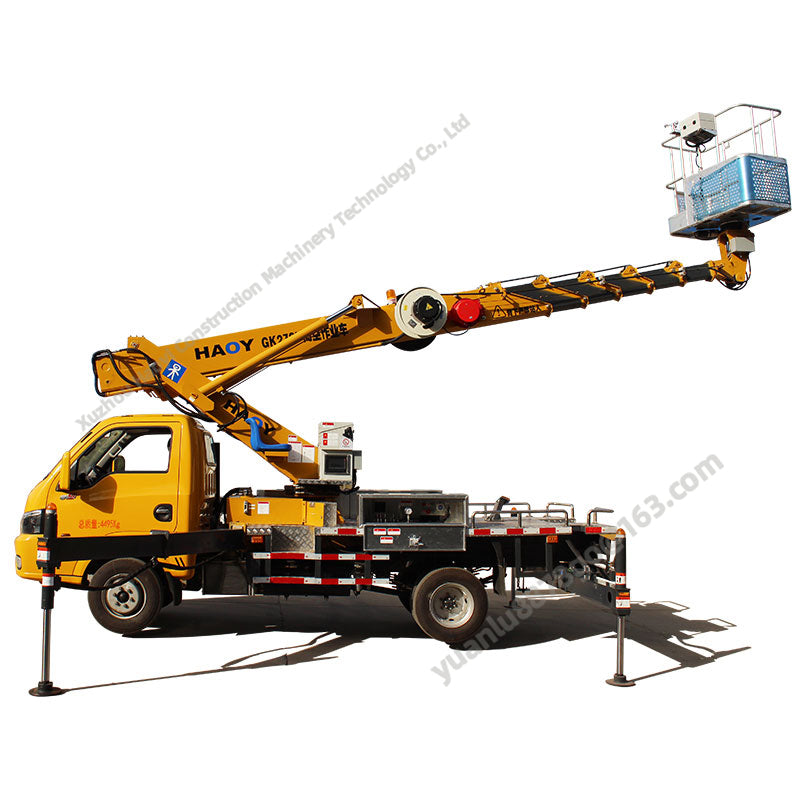

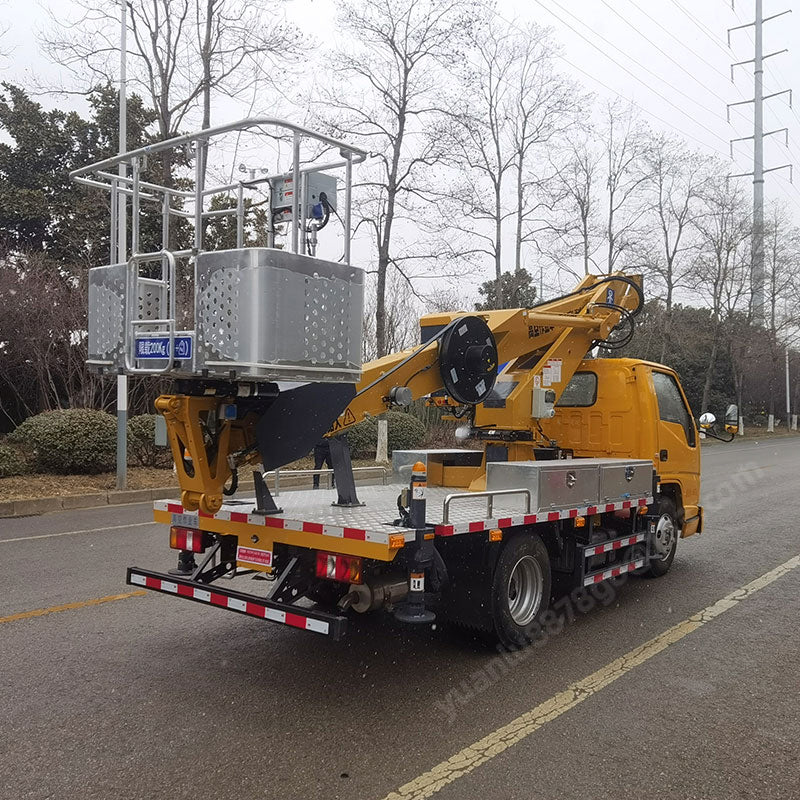

HAOY 27m Aerial Work Truck Lift Truck With Aerial work Platform

¥272,000.00
¥272,000.00
Compare Ask a question Share
Product description

27m Straight Boom Aerial Work Vehicle Specification
Category Item Unit Data
Size Parameters ★Total length mm 5995
★Total width mm 2050
★Total height mm 2900
Quality parameters Number of passengers (including driver) Bit 2
Total mass kg 4495
Main performance parameters Rated load of working platform kg 260
★Maximum operating height m 27
★Working range at maximum working height m 3
★Maximum operating range m 9
Working height at maximum working range★ m 17
Outrigger span★ Horizontal mm 4140
Vertical mm 4300
Driving parameters ★Front overhang mm 1065
★Rear suspension mm 1440
Wheelbase mm 3360
Maximum driving speed Km/h 99
Approach Angle ° 27
Departure angle ° 11
Advantages of GK27S:
1.The maximum working height can reach 27meters
2.The super-large working platform can carry 260KG and the working platform can rotate 180°;
3.The steel structure of the whole vehicle is made of high-strength materials
4.Equipped with a wireless remote control, which is safer and more convenient to operate;
5.Front V and rear H-shaped outriggers, good stability
6.Pentagonal working arm, synchronous telescopic, compact structure, high working efficiency, and large working range.
7.The working platform matches the 220V mains interface

Xuzhou Haoyi Technology Co., Ltd. specializes in the production of 14m, 20m, 21m, 23m, 24m, 25m, 27m, 33m, straight arm, folding arm, mixed arm and other wireless remote control aerial work vehicles
