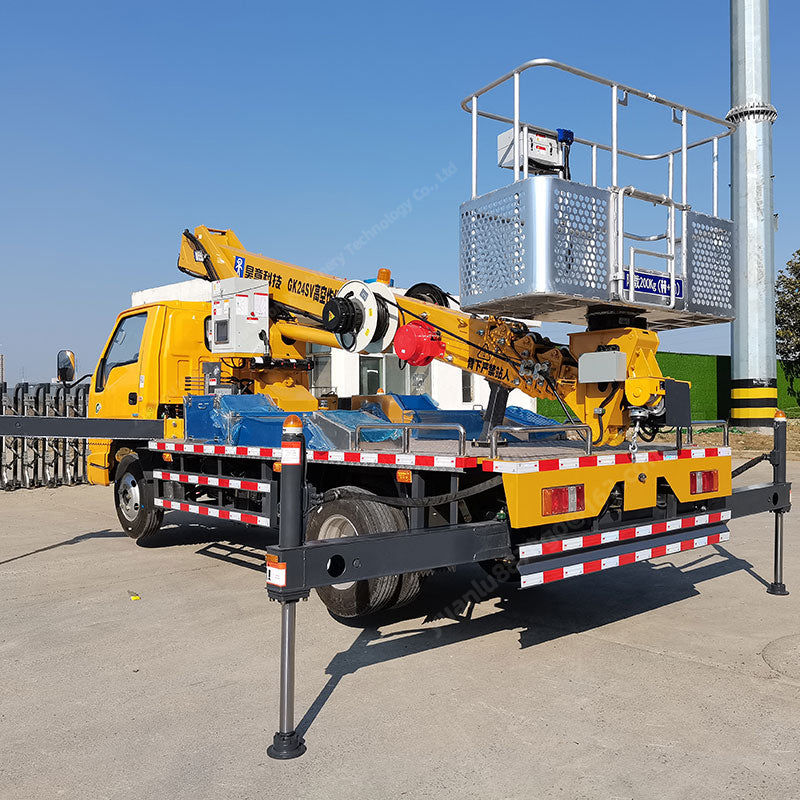

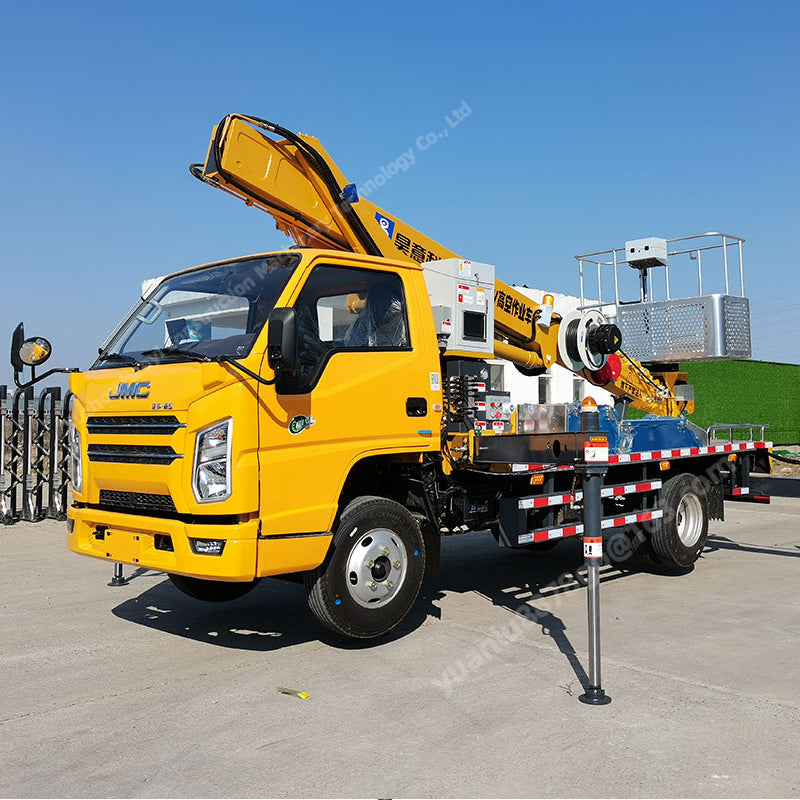

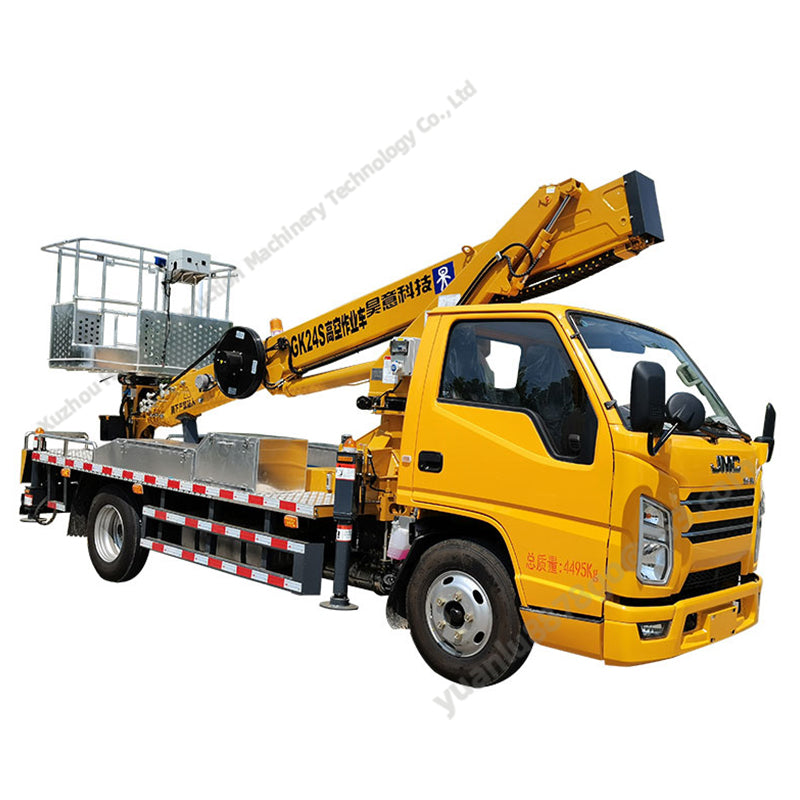

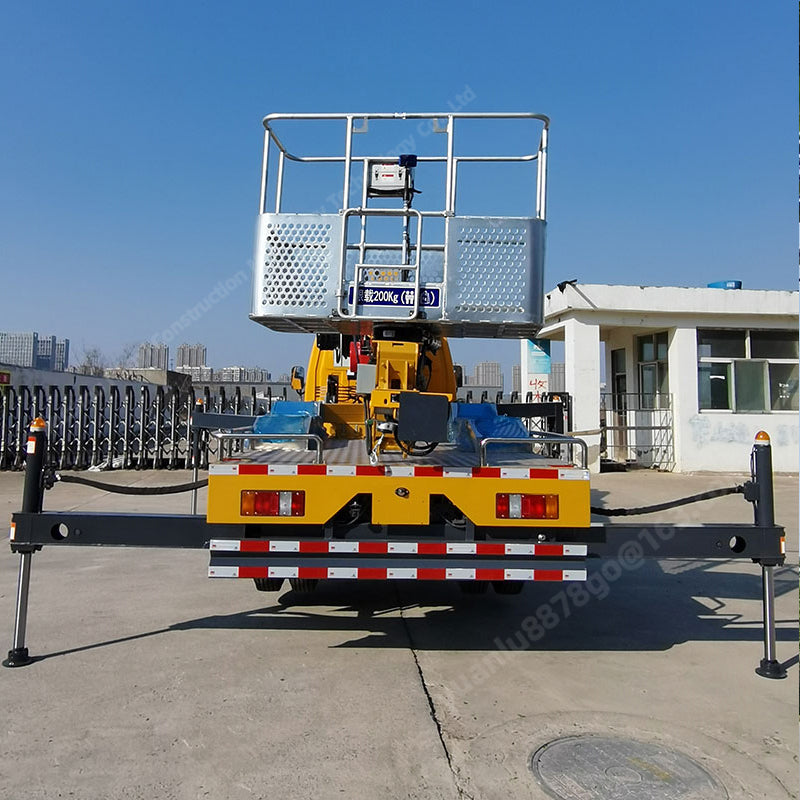

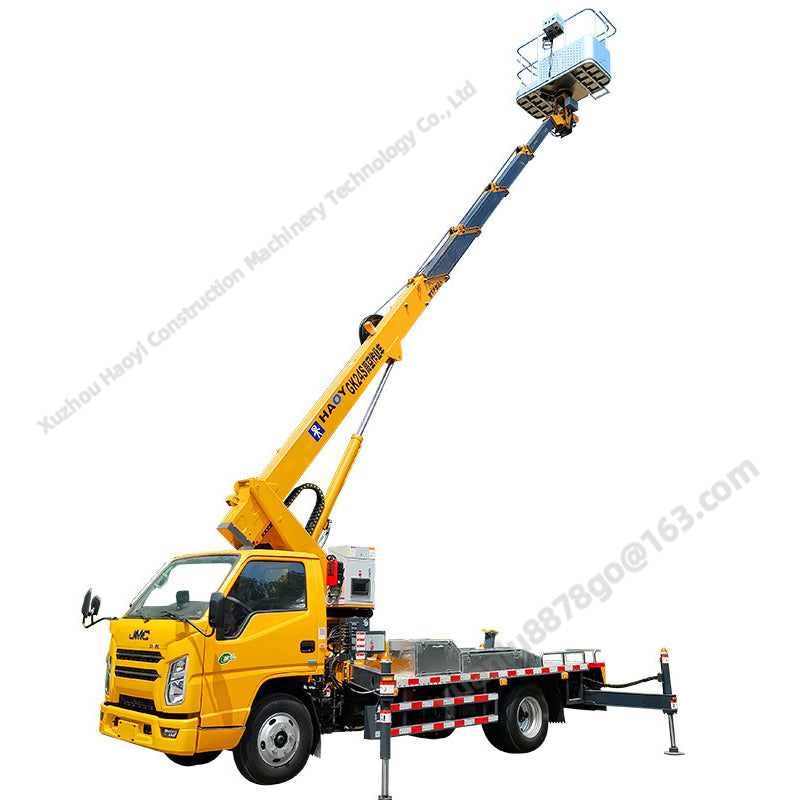

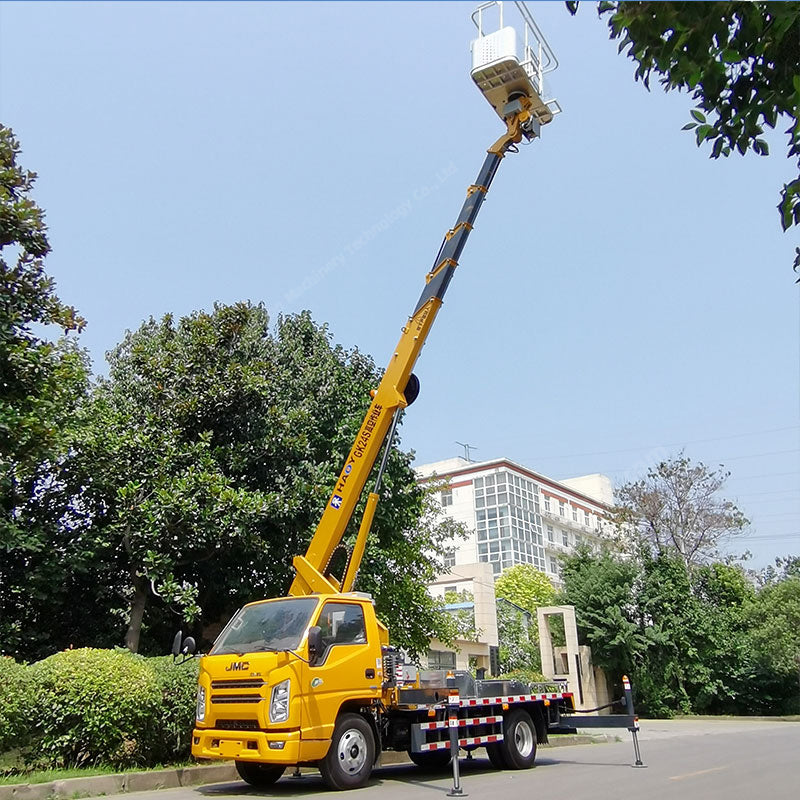

HAOY 24m Aerial Work Truck Lift Truck With Aerial work Platform
HAOY 24m Aerial Work Truck Lift Truck With Aerial work Platform
Regular price
¥248,000.00
Sale price
¥248,000.00
Regular price
Product description
Shipping & Return
24m Straight Boom Aerial Work Vehicle Specification
Category | Item | Unit | Data | |
Size Parameters | ★Total length | mm | 5995 | |
★Total width | mm | 2050 | ||
★Total height | mm | 2900 | ||
Quality parameters | Number of passengers (including driver) | Bit | 2 | |
Total mass | kg | 4495 | ||
Main performance parameters | Rated load of working platform | kg | 260 | |
★Maximum operating height | m | 24 | ||
★Working range at maximum working height | m | 3 | ||
★Maximum operating range | m | 9 | ||
Working height at maximum working range★ | m | 17 | ||
Outrigger span★ | Horizontal | mm | 4140 | |
Vertical | mm | 4300 | ||
Driving parameters | ★Front overhang | mm | 1065 | |
★Rear suspension | mm | 1440 | ||
Wheelbase | mm | 3360 | ||
Maximum driving speed | Km/h | 99 | ||
Approach Angle | ° | 27 | ||
Departure angle | ° | 11 |
Advantages of GK24S:
1.The maximum working height can reach 24 meters
2.The super-large working platform can carry 260KG and the working platform can rotate 180°;
3.The steel structure of the whole vehicle is made of high-strength materials
4.Equipped with a wireless remote control, which is safer and more convenient to operate;
5.Front V and rear H-shaped outriggers, good stability
6.Pentagonal working arm, synchronous telescopic, compact structure, high working efficiency, and large working range.
7.The working platform matches the 220V mains interface
Xuzhou Haoyi Technology Co., Ltd. specializes in the production of 14m, 20m, 21m, 23m, 24m, 25m, 27m, 33m, straight arm, folding arm, mixed arm and other wireless remote control aerial work vehicles
