4 Tons Wireless Remote Control Straight Boom Crane
Compare Ask a question Share
Product description

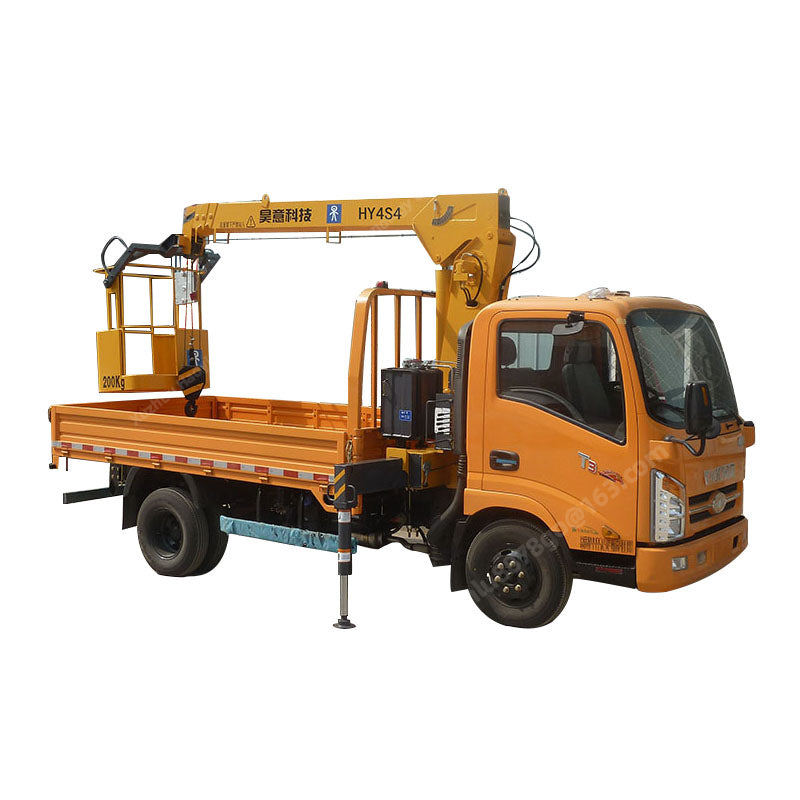

4 Ton Telescopic Boom Truck Mounted Crane Specifications
Item Unit HY4S4
Max.Lifting Moment Ton.M 8.4
Max.Lifting Capacity Kg 4000
Max.Working Radius m 10.5
Max.Working High m 12.0
Slewing Angle ° 360°Full Slewing
Installation Space mm 850
Qutrigger Span mm 4055
Crane Self Weight Kg 1300
Aerial Working High m 14.2
Rated system pressure/fow MPa/L/min 20/25
Advantages of HY4S4:
1. Compact structure, small size, small installation space;
2. Adopt Q460 high-strength plate, high strength, light weight;
3. Standard wireless remote control, more convenient and safer operation;
4. One extension cylinder, two sets of cable mechanism, three-section arm synchronous extension and retraction, high efficiency;
5. Large working range, up to 10.5m, lifting weight 400kg;
Straight arm truck crane: The arm is straight or slightly curved, and the structure is relatively simple. The straight arm cannot be folded, but can be extended, which is suitable for long-distance and large-scale lifting operations in an open working environment.
Xuzhou Haoyi Technology Co., Ltd. specializes in the production of 2-ton, 3.2-ton, 4-ton, 5-ton, 6.3-ton, 8-ton, 10-ton, 12-ton, 16-ton straight-arm and folding-arm wireless remote-controlled truck cranes.
