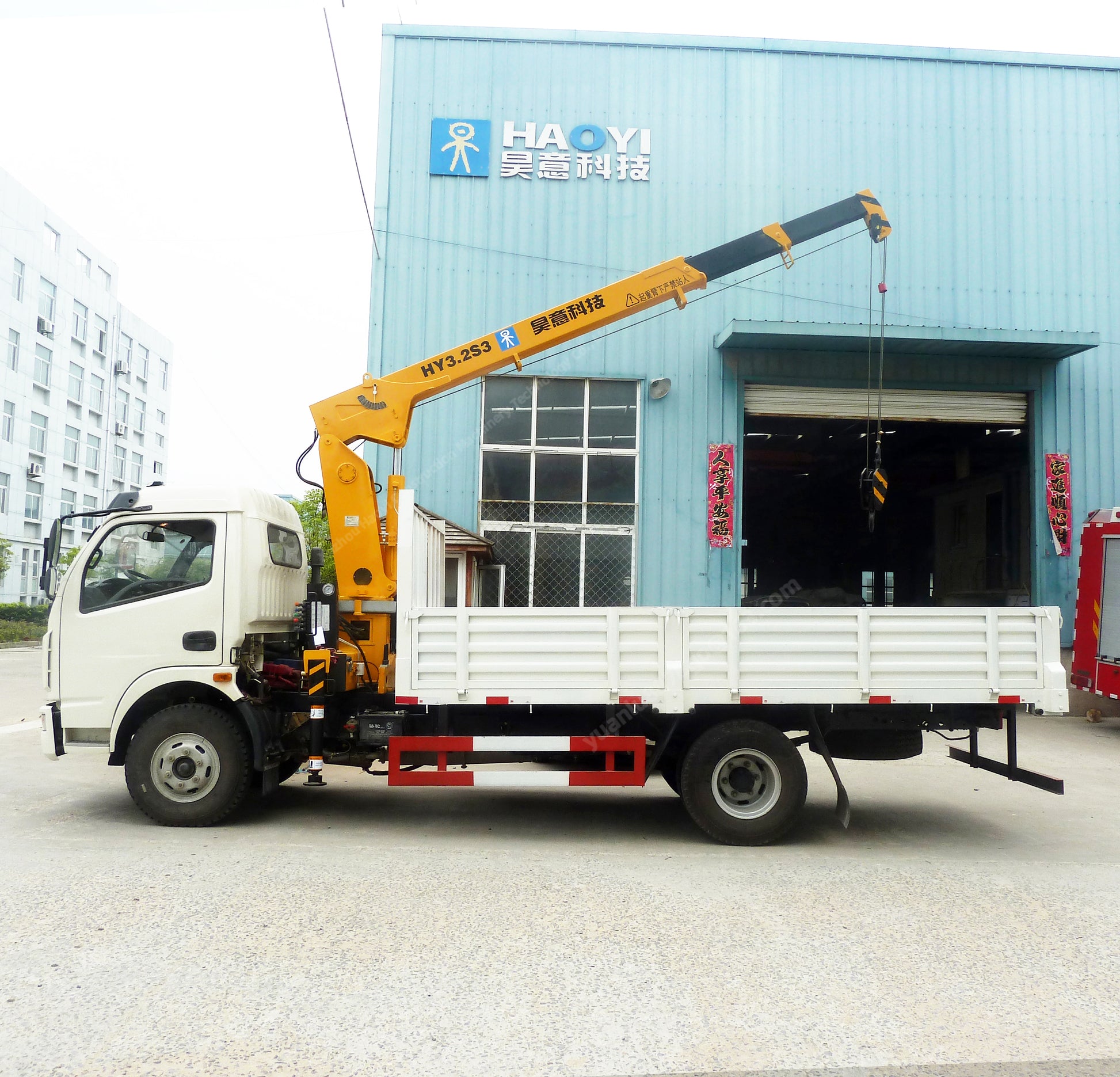

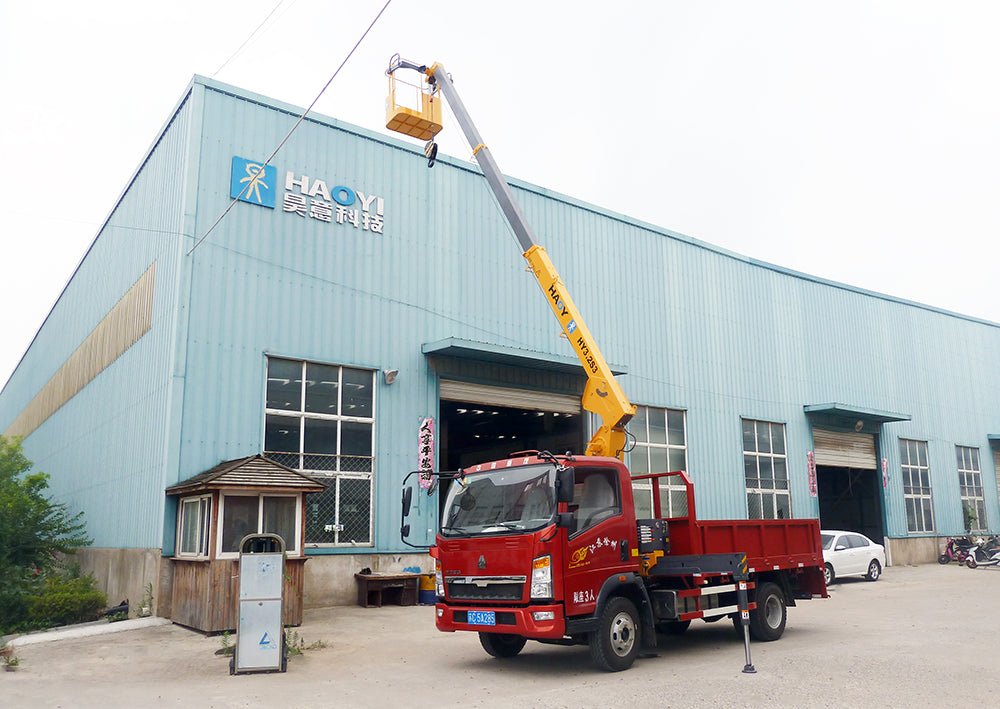

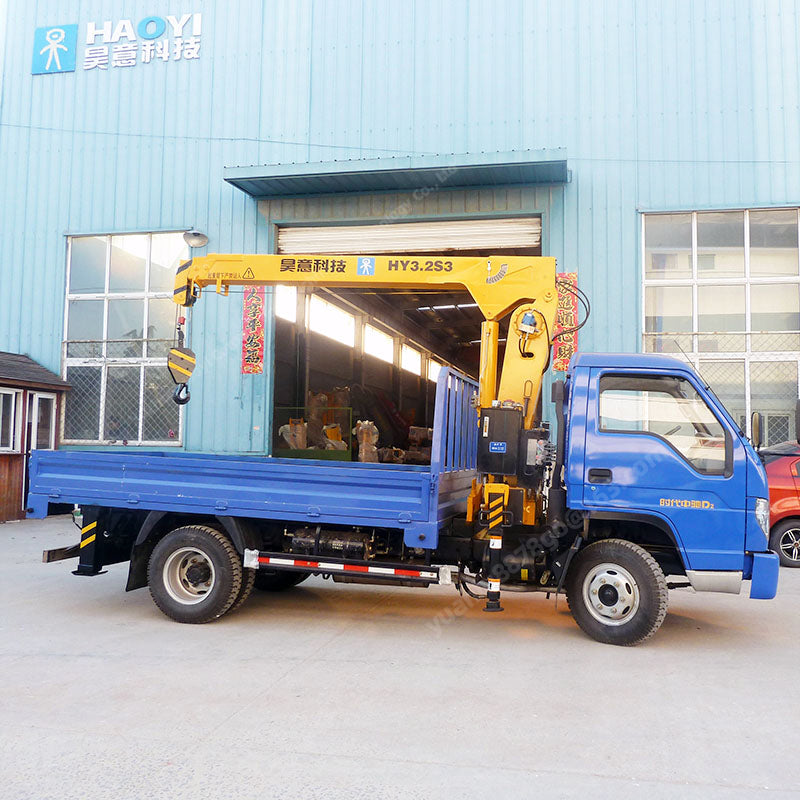

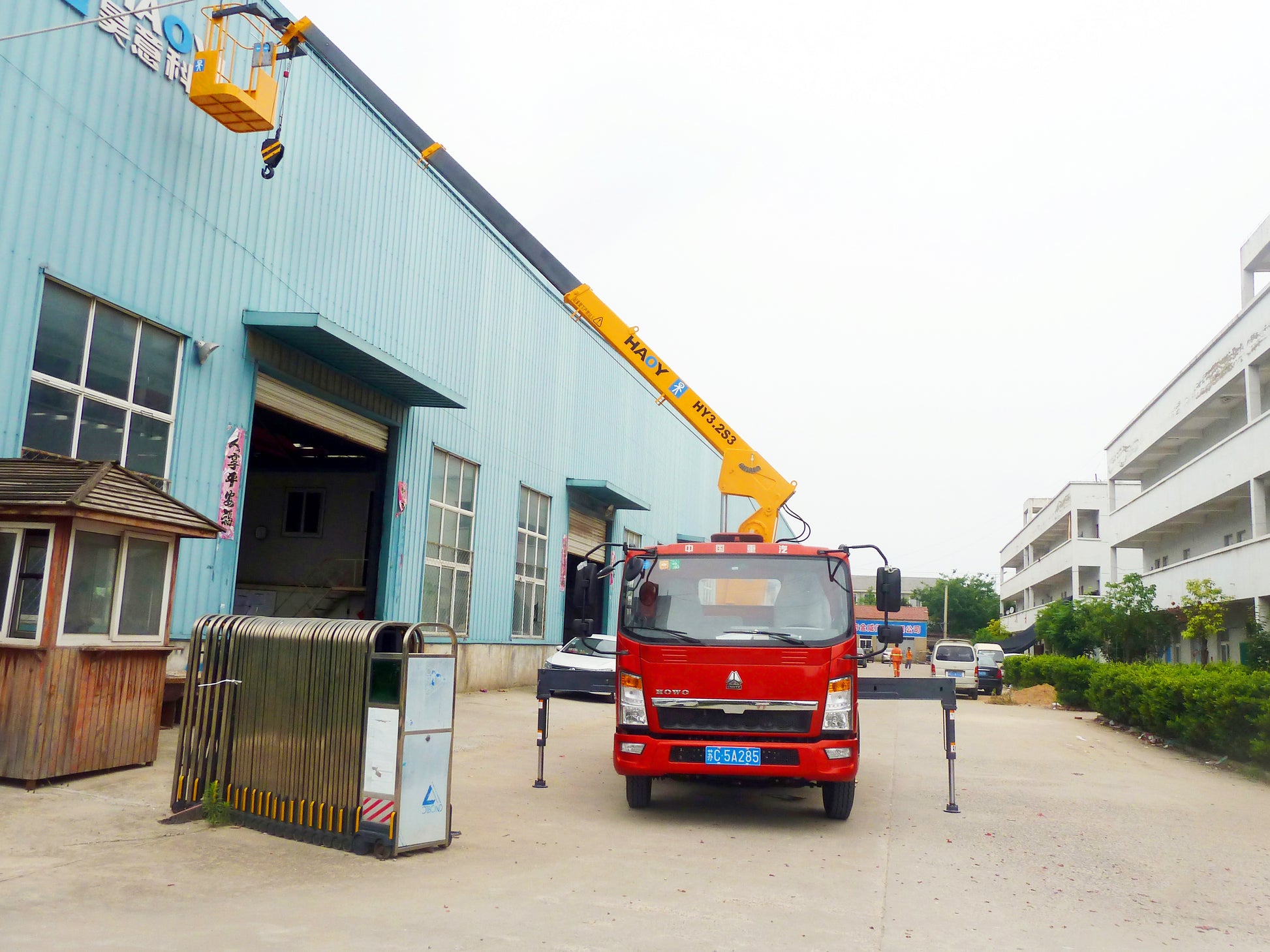

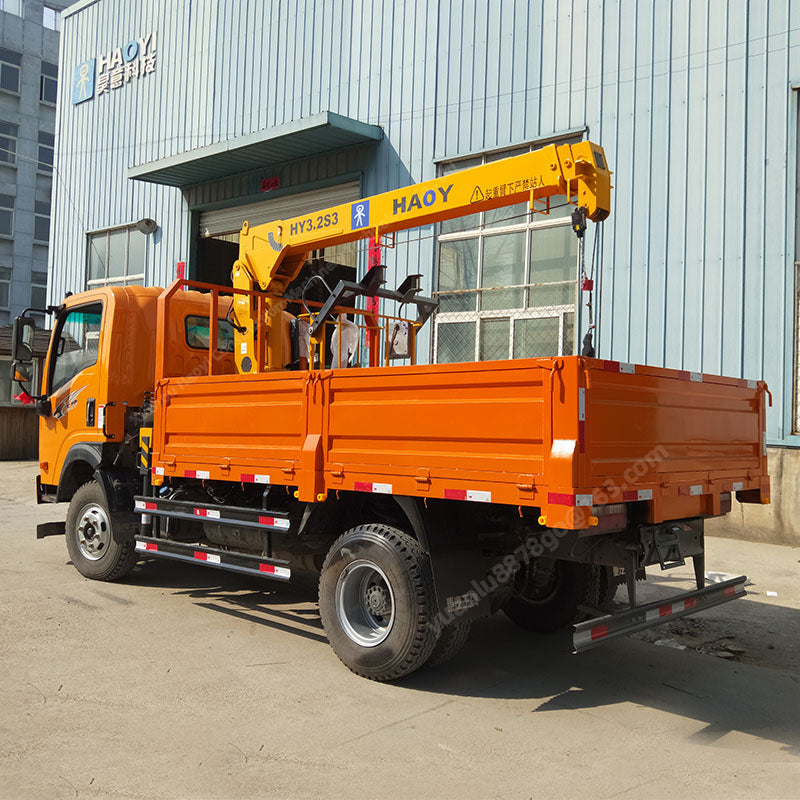

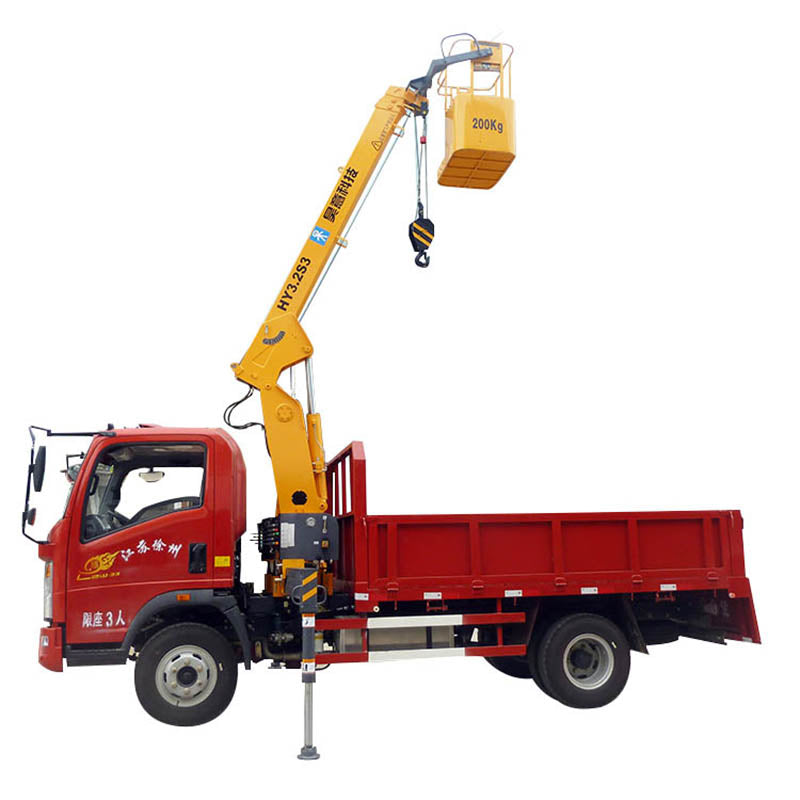

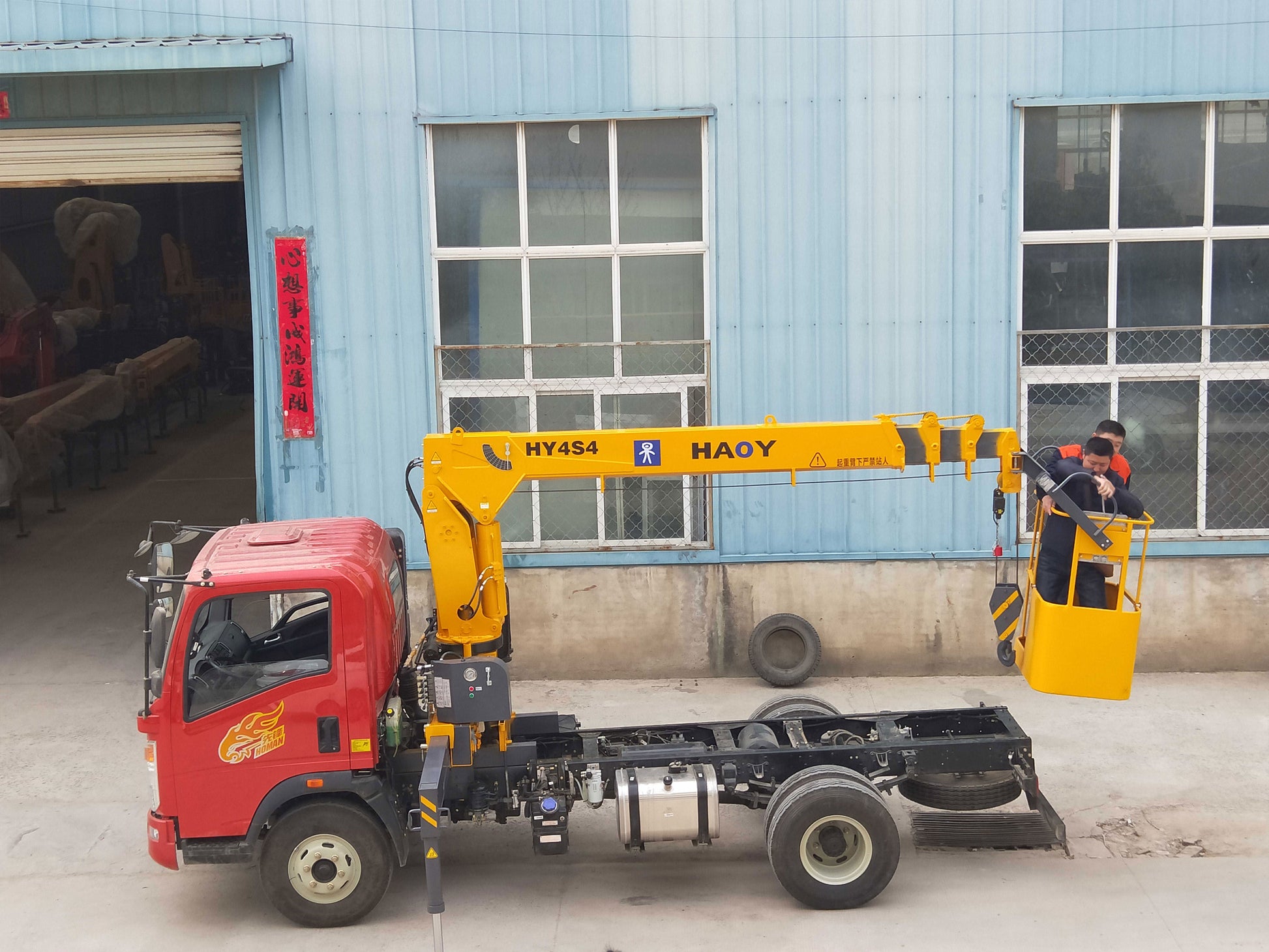

3.2 Ton Remote Control Straight Arm Truck Crane

¥56,500.00
¥56,500.00
Compare Ask a question Share
Product description







1. Compact structure, small size, small installation space;
2. Adopt Q460 high-strength plate, high strength, light weight;
3. Standard wireless remote control, more convenient and safer operation;
4. 2-section extension cylinder directly pushes 2-section arm, which can be extended and retracted with load;
5. Large working range, up to 8.2m, lifting weight 400kg;















Item Unit HY3.2S3
Max.Lifting Moment Ton.M 6.6
Max.Lifting Capacity Kg 3200
Max.Working Radius m 8.2
Max.Working High m 9.8
Slewing Angle ° 360*Full Slewing
Installation Space mm 830
Qutrigger Span mm 3055/4055
Crane Self Weight Kg 1100
Aerial Working High m 12
Rated system pressure/fow MPa/L/min 20/40


SINGLE RATIO REMOTE CONTROL

The Crane's Telescopic, Luffing,  Rotation And Hoisting Can All Be Controlled By a Remote Control. The Wireless Signal Has Strong Anti-interference Ability and The Wireless Transmission Distance Can Reach 100 Meters.







TWO-SECTION BOOM SINGLE OUTPUT


The second boom is extended independently, and then the rest of the booms are extended synchronously. The boom can be extended or retracted with load without exceeding the working range of the second boom.









 AUXILIARY TOOLS


Choose a Variety of Auxiliary Tools According to Your Needs to Expand More Functions: Crane Basket Brick Clamp Quick Change Spiral Shell Type Grabber
