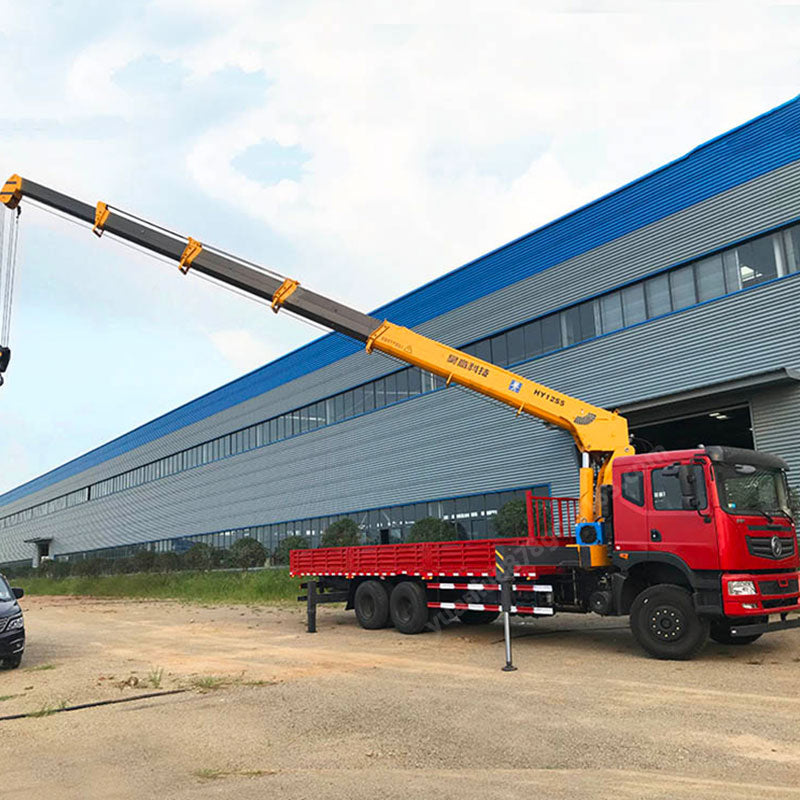

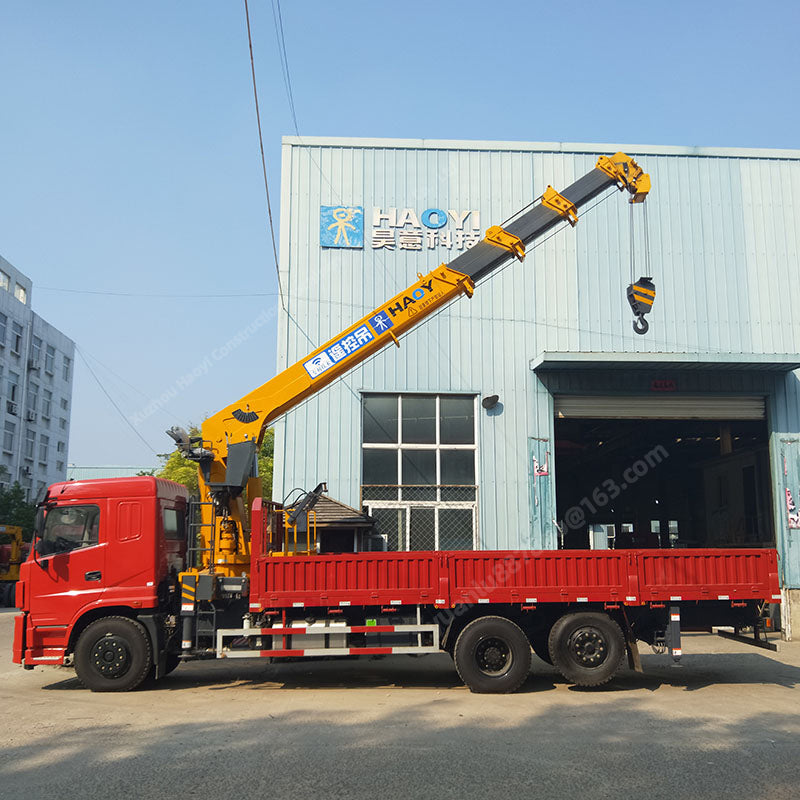

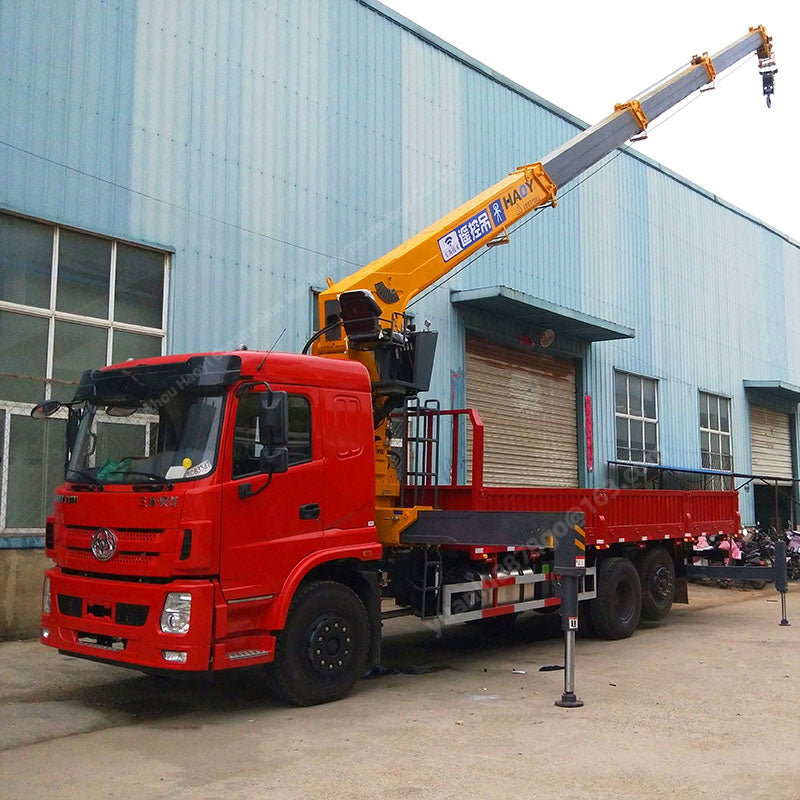

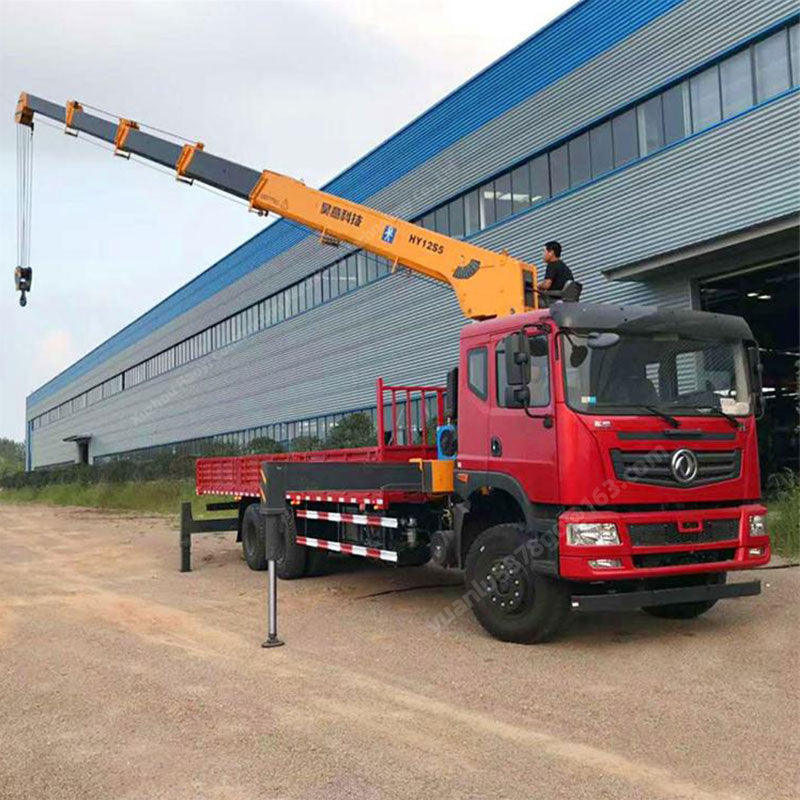

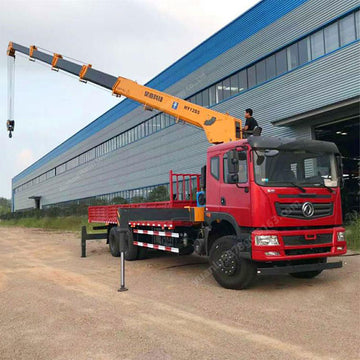

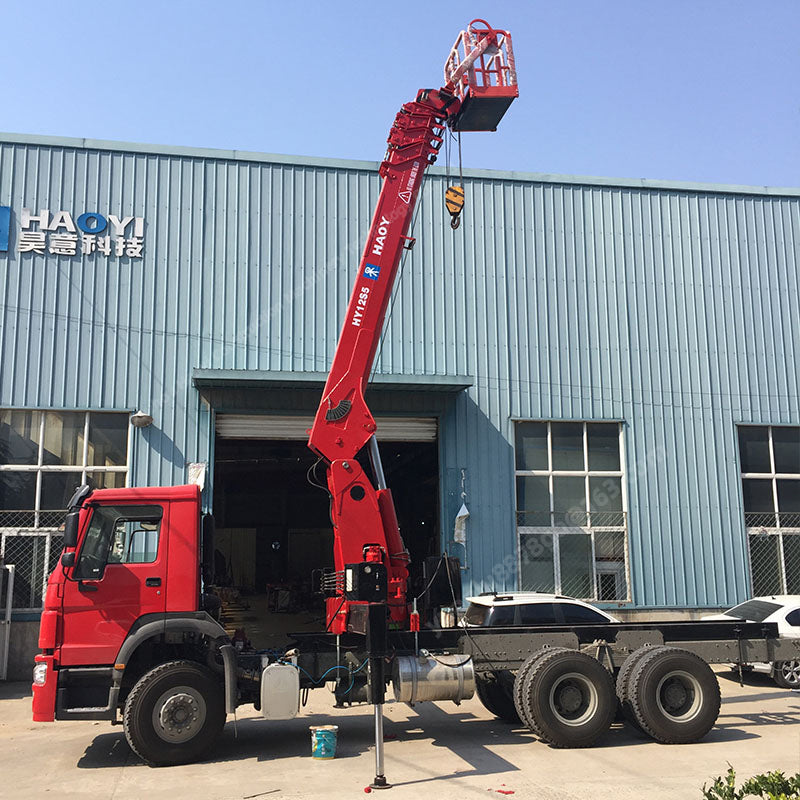

12 Tons Wireless Remote Control Hydraulic Straight Boom Lorry Crane

Product description
12 Ton Telescopic Boom Truck Mounted Crane Specifications
Item Unit HY12S5
Max.Lifting Moment Ton.M 30.0
Max.Lifting Capacity Kg 12000
Max.Working Radius m 17.2
Max.Working High m 18.9
Slewing Angle ° 360°Full Slewing
Installation Space mm 1150
Qutrigger Span mm 5700
Crane Self Weight Kg 4460
Aerial Working High m 21.3
Rated system pressure/fow MPa/L/min 22/63+40
Advantages of HY12S5:
1. Compact structure, small size, small installation space;
2. Adopt Q460 high-strength plate, high strength, light weight;
3. Standard wireless remote control, more convenient and safer operation;
4. One extension cylinder, two sets of cable mechanism, three-section arm synchronous extension and retraction, high efficiency;
5. Large working range, up to 17.2m, lifting weight 1000kg;
6. Standard upper operating seat;
Straight arm truck crane: The arm is straight or slightly curved, and the structure is relatively simple. The straight arm cannot be folded, but can be extended, which is suitable for long-distance and large-scale lifting operations in an open working environment.
Xuzhou Haoyi Technology Co., Ltd. specializes in the production of 2-ton, 3.2-ton, 4-ton, 5-ton, 6.3-ton, 8-ton, 10-ton, 12-ton, 16-ton straight-arm and folding-arm wireless remote-controlled truck cranes.
