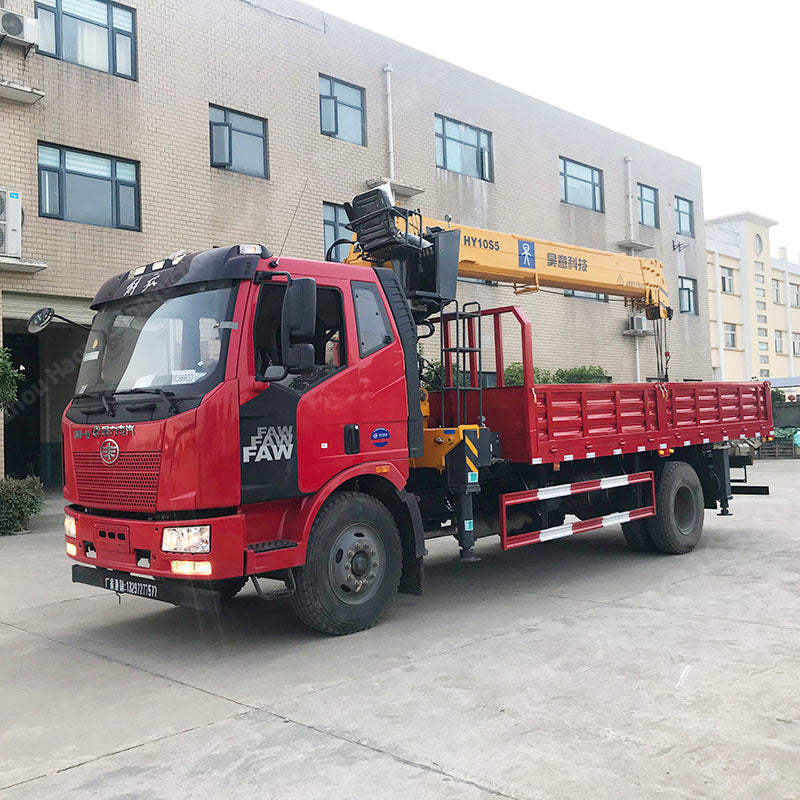

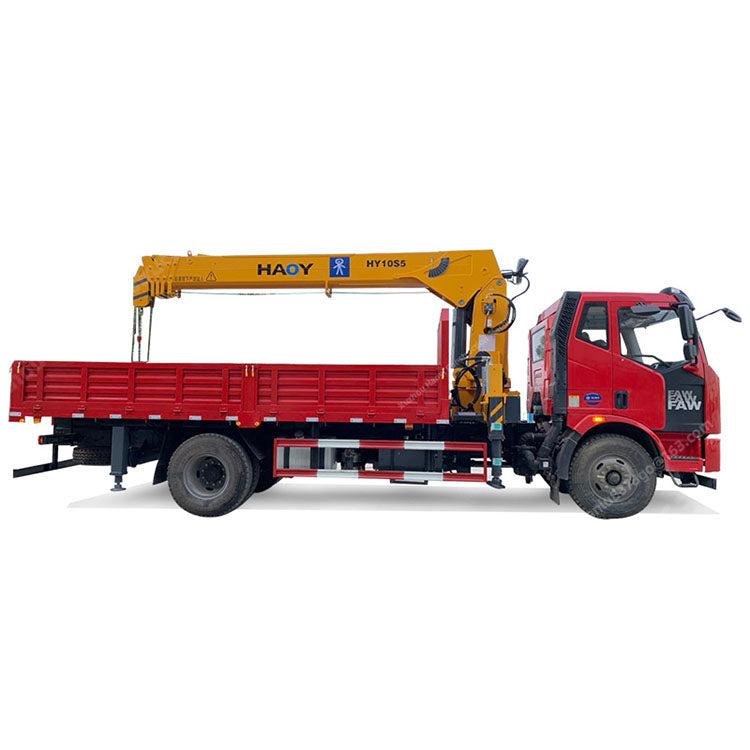

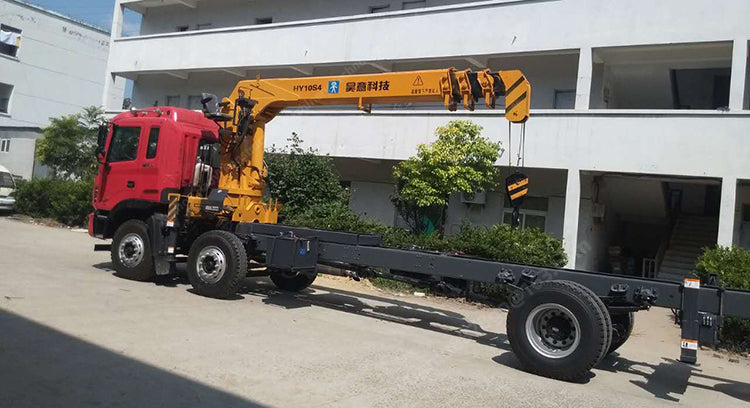

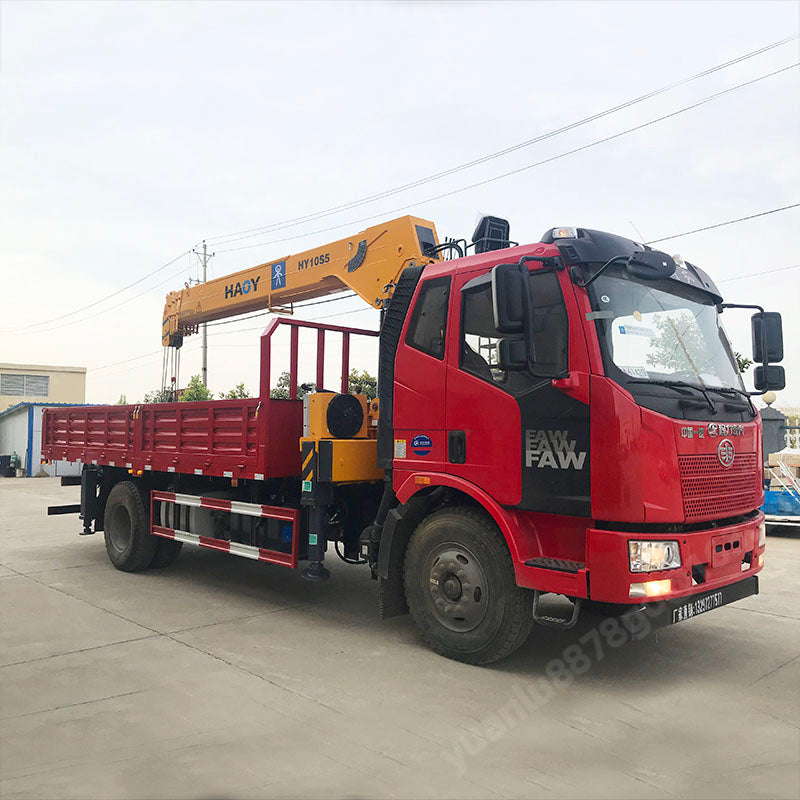

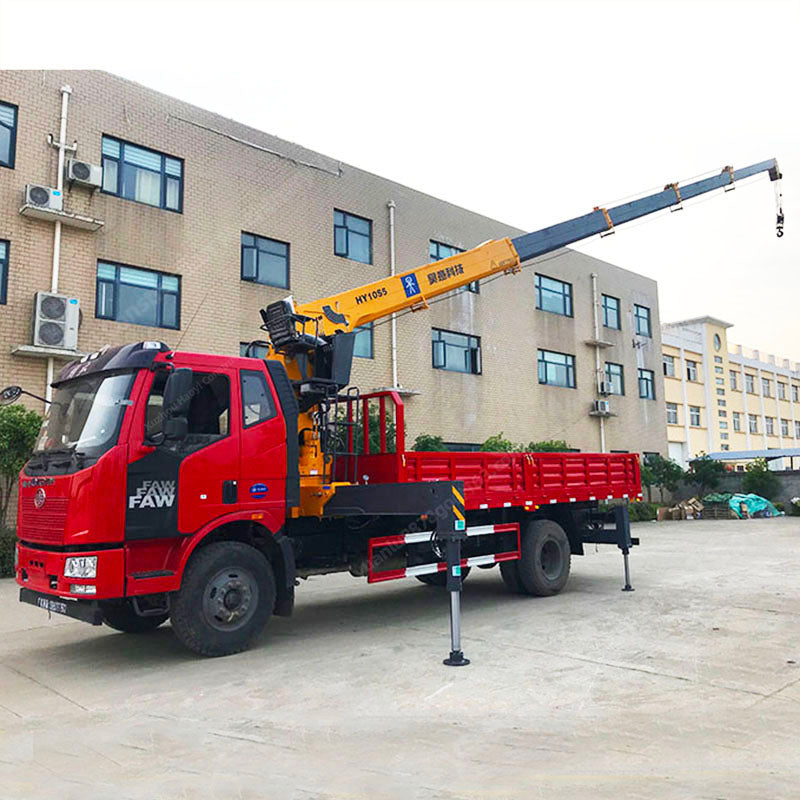

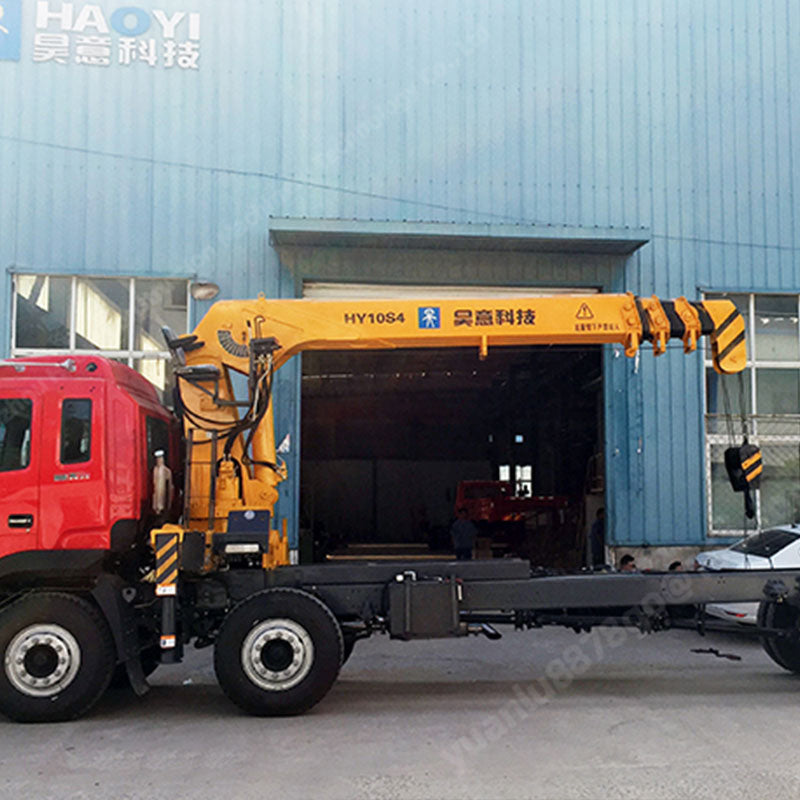

10 Tons Wireless Remote Control Hydraulic Straight Boom Lorry Crane
Compare Ask a question Share
Product description
10 Ton Telescopic Boom Truck Mounted Crane Specifications
Item Unit HY10S5
Max.Lifting Moment Ton.M 25
Max.Lifting Capacity Kg 10000
Max.Working Radius m 14.2
Max.Working High m 15.7
Slewing Angle ° 360°Full Slewing
Installation Space mm 1100
Qutrigger Span mm 5700
Crane Self Weight Kg 3900
Aerial Working High m 18.4
Rated system pressure/fow MPa/L/min 22/63
Advantages of HY10S5:
1. Compact structure, small size, small installation space;
2. Adopt Q460 high-strength plate, high strength, light weight;
3. Standard wireless remote control, more convenient and safer operation;
4. One extension cylinder, two sets of cable mechanism, three-section arm synchronous extension and retraction, high efficiency;
5. Large working range, up to 17.3m, lifting weight 800kg;
6. Standard upper operating seat;
Straight arm truck crane: The arm is straight or slightly curved, and the structure is relatively simple. The straight arm cannot be folded, but can be extended, which is suitable for long-distance and large-scale lifting operations in an open working environment.
Xuzhou Haoyi Technology Co., Ltd. specializes in the production of 2-ton, 3.2-ton, 4-ton, 5-ton, 6.3-ton, 8-ton, 10-ton, 12-ton, 16-ton straight-arm and folding-arm wireless remote-controlled truck cranes.
